S4 SOLAR XPLORE – Portable heated FID VOC analyser

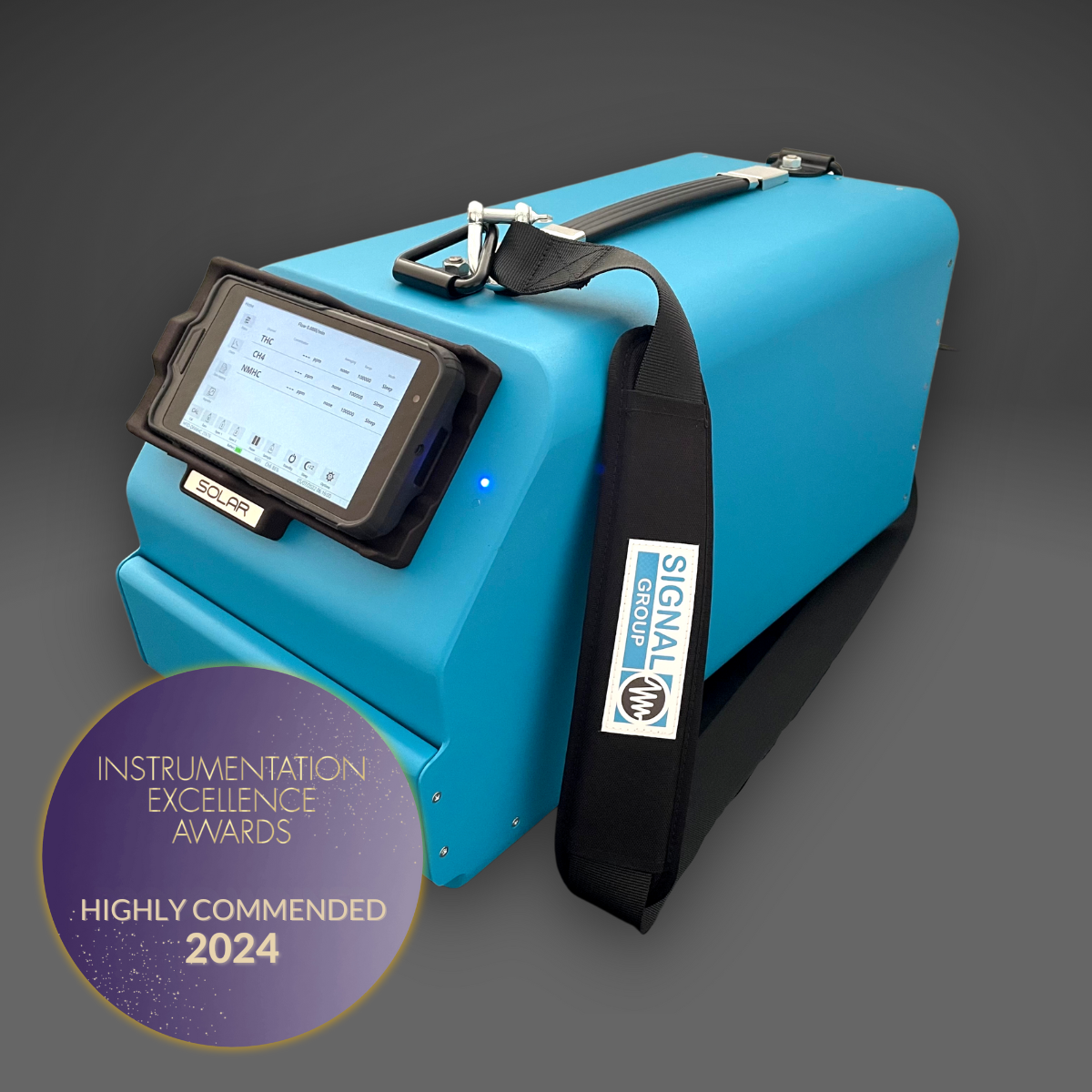

The latest addition to our range of advanced FID analysers, the S4 SOLAR XPLORE is a compact, portable version of our popular S4 SOLAR rack mount analyser. With built-in features such as a detachable tablet with integrated wireless connection, a precision monobloc heated FID and an optional integrated Zero air generator, the S4 SOLAR XPLORE can be fitted with dual FID detectors for simultaneous monitoring of THC, NMHC and methane.

Optional Configuration

Add to Quote

Key Features

• Single or dual detectors

• Integrated zero air generator

• Rugged and portable

• Wireless tablet interface

• Typical warm up 30 minutes

• Precision monobloc heated FID

• Simultaneous monitoring of THC, NMHC & Methane

• Relevant Standards:

  • EN12619
  • EN15267-3
  • EN15267-4
  • ISO25140
  • Method 25
  • Method 25a
  • EURO VI/VII
  • ARP1256D
  • CPA 2015-C174

Applications

• Air separation

• Solvent/VOC abatement/scrubber efficiency

• Thermal oxidiser control/monitoring

• Process control

• Combustion research

• Biomass combustion monitoring

• Carbon bed breakthrough detection

• Gas purity

• Locomotive/automotive/marine combustion engine exhaust emissions

• Gas turbine exhaust emissions

• Vehicle emissions

• Source emissions

• Stack testing

• Fermentation monitoring

• Continuous emissions monitoring (CEM)

• Container leakage control/monitoring

• Safety monitoring

• Compliance monitoring

• Landfill

• Semiconductor manufacturing process monitoring

• Part B processes

• Environmental permit

• Paintshop emissions

• Solvent emissions

• Portable FID

• Portable VOC emissions

• Evaporative emissions

Documentation

➔ Datasheet

➔ Flyer

➔ Wireless Tablet User Manual

Technical Specification

MEASUREMENT TECHNIQUE: Flame Ionisation Detector

MEASURING UNITS: PPM or mg user selectable

MEASURING RANGES:
Range A: 0-1000ppm.
User settable to e.g. 0-1ppm, 0-5ppm, 0-10ppm, 0-50ppm,0-100ppm, 0-500ppm, 0-1000ppm.
Resolution:0.01ppm

Range B: 0-10000ppm.
User settable to e.g. 0-10ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm. 0-10,000ppm.
Resolution: 0.1ppm

Range C. 0-100,000 ppm.
User settable, with resolution of 1ppm

RESPONSE TIME:
THC <1.5 secs
CH4 and NMHC <2.5 secs

REPEATABILITY: <1% FSD

OXYGEN EFFECT: <2% of reading from 0% to 21% O2 (H2He)

LINEARITY: +/- 0.5% FSD or 2% of point EN14181 – dc rel : <0.5R2 : >0.99

DRIFT: +/-0.2ppm or 2% range per week, whichever greater

NOISE: +/-0.1ppm or 1% range, whichever greater

TEMPERATURE EFFECT ON ZERO: <0.15% per oC

TEMPERATURE EFFECT ON SPAN: <0.3% per oC

SAMPLE INLET PRESSURE:
With internal sample pump: -0.6 to +0.4bar
Without internal sample pump: +0.2 to +0.5bar

ACCURACY: <0.2% FSD

PRECISION: <1%

DETECTION LIMIT: 0.05mgC/m3

BYPASS FLOW SENSITIVITY: Less than 2% from 1 to 3 L/min

SAMPLE FILTER: Removable 0.4 micron PTFE 7um non removable stainless steel filter for CFID

DISPLAY: Blank or Detachable Screen

SAMPLE CONDITION: 0-200oC (Heated version)0-80oC non-condensing for CFID

FUEL CONSUMPTION:
Single detector:35ml/min H2 or 180ml/min H2He
Dual detectors:70ml/min H2 or 360ml/min H2He

AIR SUPPLY:
Single detector:<1.1L/min
Dual detector:<1.6L/min

OPERATING CONDITIONS: 5-40oC ambient temperature

OUTPUTS:
0-10 Vdc
RS232
Ethernet
TCP/IP
Optional 4-20 mA

POWER REQUIREMENTS:
100 to 250Vac
Optional 24VDC
600W max

REMOTE CONTROL:
AK protocol
Ethernet
Comes with S4i remote software operating system.

SIZE AND WEIGHT: 19” (w) x 133.5 (h) x 530 mm (d)Apx. 22Kg

IP RATING: IP55

Optional Configuration

FID Type:
HFID-THC
HFID-DNMHC

Power Supply:
110VAC/220VAC (Standard – Universal)
24VDC
Mains + 24VDC

Power Cable:
UK
EU
USA
China

Fuel Gas:
H2He (Standard)
H2 Fuel

Range Required:
0-1000ppm
0-10,000ppm (Standard)
0-100,000ppm

SOLAR XPLORE FID OPTIONS:

Internal Air Purifier*:
Carbon Trap
AS90

Output:
0-10VDC (Standard)
4-20mA (optional at extra cost)

Heated Line:
3 metres
5 metres
10 metres
15 metres
None

Gas Bottles:
Yes
No

Gas Bottles*:
Empty
Filled
