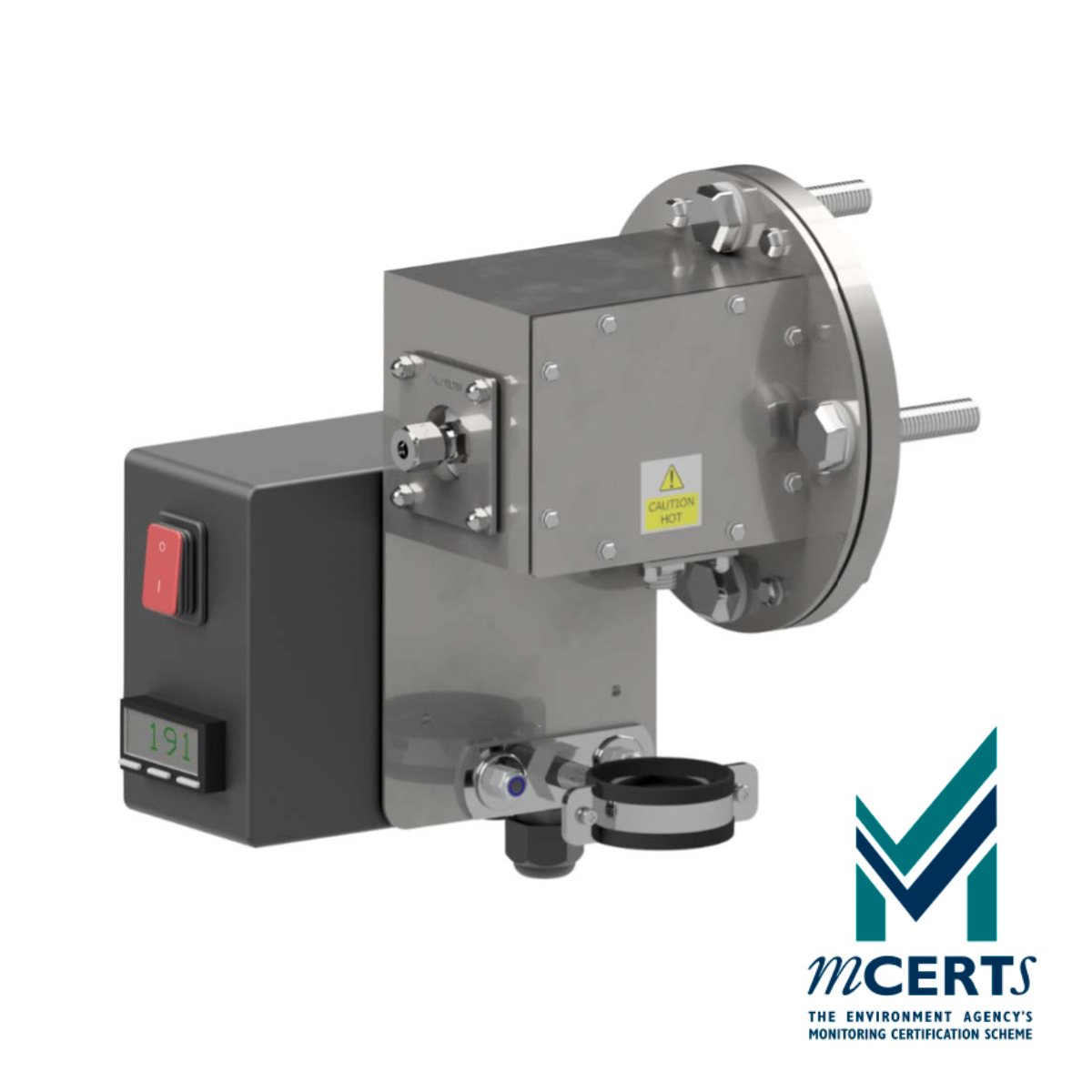

The 363SM is a heated pre-filter which is installed close to the sampling point, providing a filtration of hot sample gas before allowing down the heated line to the gas analyser.
The equipment comprises of a temperature controlled (heated @191oC) oven housing a particulate filter. Filter removal is easily achieved via the back panel, avoiding the need to remove the equipment from the stack.
| AdBlue/Urea injection control Air separation Ammonia Slip Automotive Biomass combustion monitoring Boiler and Combustion Performance Boiler/stove emissions compliance Carbon bed breakthrough detection Catalyst Research Combustion emissions monitoring Combustion research Compliance monitoring Container leakage control/monitoring Continuous emissions monitoring (CEM) Controlled atmosphere storage Denox Direct Reduction Iron (DRI) process emission monitoring Engine Exhaust Environmental Permit Ethylene production Evaporative emissions Fermentation monitoring Fertiliser process control/monitoring Flue gas emissions monitoring Fuel cell analysis | Gas purity Gas turbine exhaust emissions Greenhouse gas (GHG) measurement Landfill Methane Cutting Mining Modified atmosphere packaging (MAP) NOx emissions monitoring Paintshop emissions Portable VOC emissions Process control Process Emission Monitoring Safety monitoring Scrubber efficiency Semiconductor Gases Semiconductor manufacturing process monitoring Solvent/VOC abatement/scrubber efficiency Source emissions Stack testing Thermal oxidiser control/monitoring Tobacco Testing Toxic Gas Measurement Vehicle emissions |
MAIN POWER:
230V +/- 15% 50/60Hz, 1.2A
OVEN TEMPERATURE:
191oC
INLETS:
1
HOT OUTLETS:
1
GAS WETTED PARTS:
Stainless Steel
FILTER TYPE:
Removable 0.4 microns PTFE
RATING:
IP65
DIMENSIONS:
200(h) x 200(w) x 200(d) mm
MOUNTING FLANGE:
DN65 PN6 SS FLANGE
